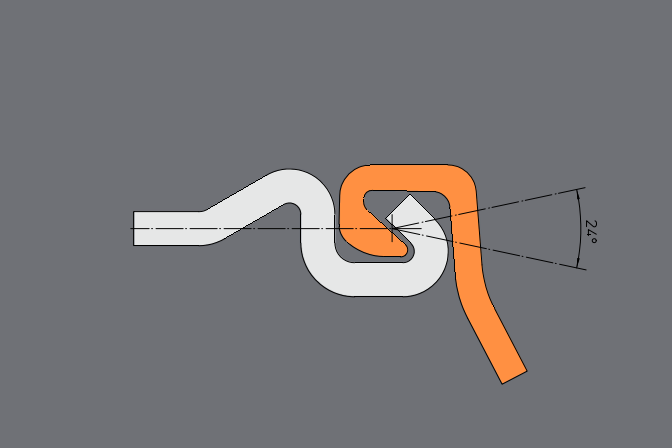

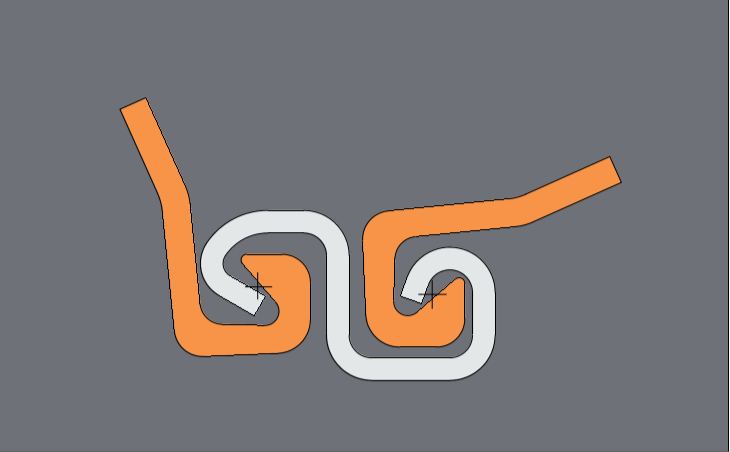

C22/9* & C22/10* (pat.) approx. 10 kg/m & approx. 11.35 kg/m
S20* (pat.) approx. 14.70 kg/m
- Diese modulare 90° Verbindung zwischen Larssen-Spundbohlen bietet hohe Variabilität durch große Ausschwenkwinkel in beiden Schlosskammern. Das Profil eignet sich für alle gängigen Larssen U- und Z-Bohlen, sowie einige, ausgewählte kaltgewalzte Profile. Es ist nicht einzeln rammbar und sollte vor der Einbringung gefädelt werden (EN12063). Bei kaltgewalzten Profilen ist unbedingt die Schlossreihenfolge zu beachten.
- This clutch offers a modular 90° connection between "Larssen-sheet-piles" and a high variability with a lot of swing on both clutch- chambers.This clutch-type is suitable for common Larssen U- and Z-piles as well as some cold formed profiles. It should not be driven single and attached to one sheet-pile before driving (EN12063). On combination with cold-formed profiles it is important to respect the correct sequence

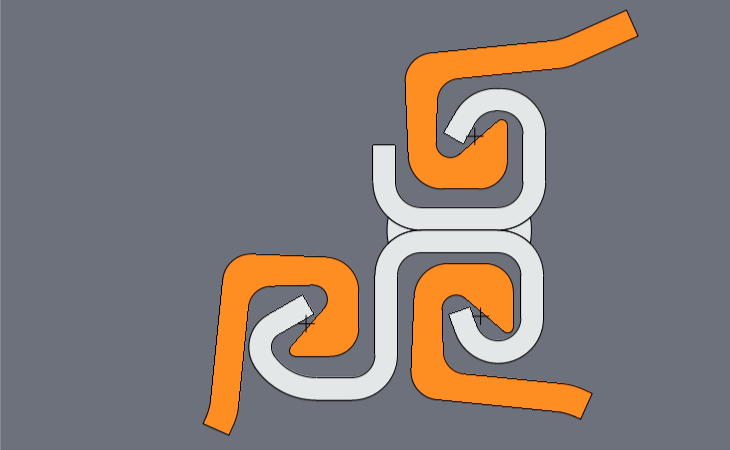

ST* (pat.) approx. 24.3 kg/m
- Die weltweit erste modulare, patentierte, 3-Wege Verbindung zwischen Standard-Larssen-Bohlen, die in einem kombinierten Prozess aus kalter Verformung und Schweissung produziert wird und dadurch uneinholbar wirtschaftlich ist.
- This is the worlds first patented 3-way Larssen-Clutch, that is produced in an economical cold-bending/welding process, that offers a solid connection and which is, at the same time, unbeatable economic.

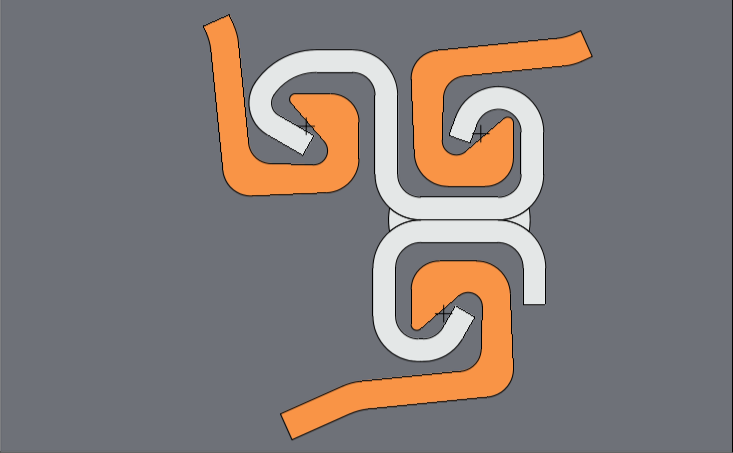

STO* (pat.) approx. 24.3 kg/m
- Die weltweit erste modulare, patentierte 3-Wege Verbindung, hier im oberen Bereich als "Omega" ausgebildet, zwischen Standard- Larssen-Bohlen, die in einem kombinierten Prozess aus kalter Verformung und Schweissung produziert wird und dadurch uneinholbar wirtschaftlich ist
- This is the worlds first patented 3-way Larssen-Clutch, here in the upper part designed with an omega-approach,, that is produced in an economical cold-bending/welding process. It offers a solid connection while being, at the same time, unbeatable economic.

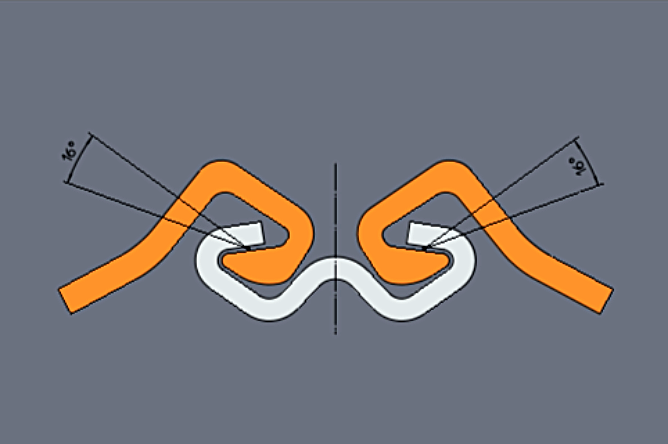

Omega-light* (pat.) approx. 10.52 kg/m
- Ein vielseitiges, stabiles und gleichzeitig leichtes "Omega" für Standard-Larssen-Bohlen, die maximale Querschnittbreite beträgt nur 100mm.
- A very versatile, solid, but lightweight "Omega"connecting standard Larssen-sheet-piles, with only 3.94 inch max. on cross-section
UH-180/12* & UH-248/12* (pat.) approx. 14.89 kg/m & 18.08 kg/m
- Die UH-Serie bietet eine sehr stabile (12mm Stahldicke) und vielseitige Spundwandkupplungsfunktion. Sie ermöglicht die Erstellung von Kombispundwänden, verbindet zum Beispiel Träger mit Trägern, Träger mit Larssen-Zwischenbohlen, Rohre mit Rohren und Rohre mit Larssen-Zwischenbohlen. Die Kupplungsserie bietet die gängigen Systembreiten von 180mm und 248 mm.
- The UH-serious offers a very solid (12mm steel thickness) and versatile connection. It allows the construction f.e. of combi-walls such as beam to sheet-pile (Larssen), pipe to sheet-pile (Larssen), but as well beam to beam and pipe to pipe. We provide the UH clutch in two, common system widths, 180mm and 248mm.
Dichtung/Sealant
- LockIt! liefert verschiedene, leistungsfähige Dichtungssysteme passend zu Ihrem Projekt
-LockIt! provides you with a variety of sealants, that suit your requirements.
* alle Kupplungsdesigns unterliegen dem Schutz internationaler Designpatente. Die auf dieser Webseite bereitgestellten Daten sind Näherungswerte. Die Profile werden in CE zertifizierten Walzwerken hergestellt. Die angegeben Zahlenwerte sind Näherungswerte und können real differieren. LockIt! Verbinder werden gemäß EN 10249 produziert. © LockIt! GmbH
* all clutch-designs are protected by international design-patents. These clutches are produced in CE-certified mills. All figures are approximate ones and can differ. LockIt! connectors are produced according to EN 10249 © LockIt! GmbH
Stand: 01.2021
